Developers

Integrate agents via MCP tools or REST APIs. Keep a Human‑in‑the‑Loop for safe decisions, with optional end‑to‑end encryption.

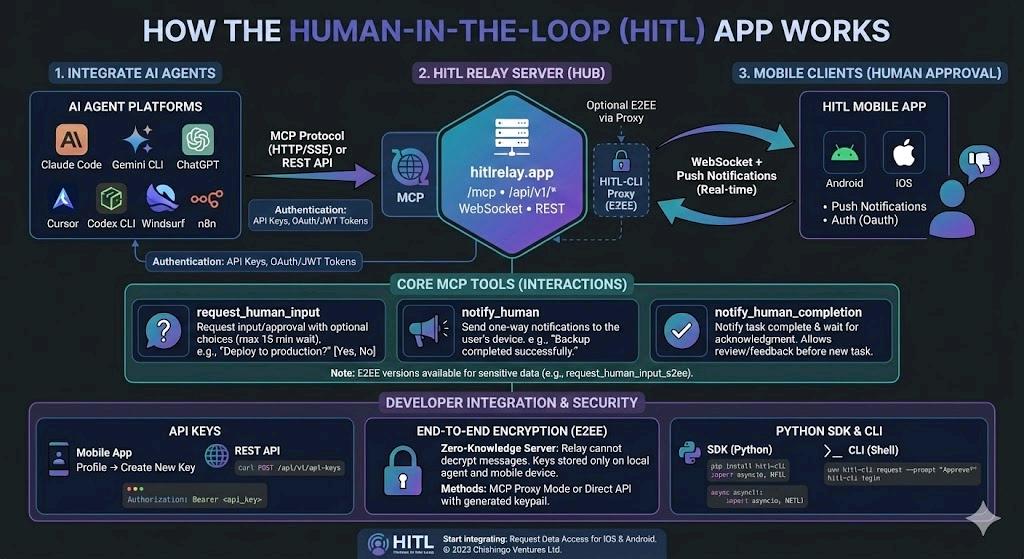

Architecture

Agents connect via MCP (Streamable HTTP) or REST; the Relay brokers requests and responses, and the mobile app handles secure notifications and approvals.

MCP Tools

HITL Relay MCP Server exposes three core MCP tools for agents to interact with the user. All human in hte loop interactions have a maximum wait time of 15 minutes for responses of the user

• request_human_input – Request input from the human user with optional choices (for easy human reply)
• notify_human – Send one-way notifications to the user's device
• notify_human_completion – Notify user when a task is complete and wait for acknowledgment. This allows user to review provide feedback or kick off a new task

Note: E2EE versions (request_human_input_e2ee, notify_human_e2ee) available for sensitive data. Agent registration is automatic.

MCP Prompts

HITL Relay MCP server provides a useful starter prompt hitl_coms_only for commnicating to the agent/llm on how to use human loop tool for all further communications with the user

API Keys

Create agent-scoped API keys for programmatic access to HITL from your applications.

# Create a new API key
curl -X POST https://hitlrelay.app/api/v1/api-keys \
  -H "Authorization: Bearer <jwt>" \
  -H "Content-Type: application/json" \
  -d '{"description":"CLI key","agent_id":"<uuid>"}'

# Response
{"api_key":"mcp_pk_...","prefix":"mcp_pk_x"}

Pass API keys via Authorization: Bearer <api_key> header or HITL_API_KEY environment variable.

End-to-End Encryption (E2EE)

For maximum privacy, HITL supports end-to-end encryption where the relay server cannot decrypt your messages. Only your local agent and mobile device have the decryption keys.

# Configure Claude Desktop (claude_desktop_config.json)
{
  "mcpServers": {
    "hitl-e2ee": {
      "command": "hitl-cli",
      "args": ["proxy", "https://hitlrelay.app/mcp-server/mcp/"]
    }
  }
}

# Or for Claude Code
claude mcp add hitl-e2ee -- hitl-cli proxy https://hitlrelay.app/mcp-server/mcp/

# Enable E2EE for hitl-cli
export HITL_API_KEY="mcp_pk_..."
export HITL_E2EE_ENABLED=true

# CLI automatically generates keypair
hitl-cli request --prompt "Deploy to production?"

# Keys stored at:
# ~/.config/hitl-shin-relay/agent.key

Note: E2EE MCP tools (request_human_input_e2ee, notify_human_e2ee) are available but transparent when using proxy mode.

Python SDK Integration

Integrate HITL capabilities directly into your Python applications using the official SDK:

pip install hitl-cli

import asyncio
from hitl_cli import HITL

async def main():
    # SDK automatically uses your configured credentials
    # (OAuth via hitl-cli login, or HITL_API_KEY environment variable)
    hitl = HITL()

    try:
        # Request input with choices
        response = await hitl.request_input(
            "Do you want to proceed with the database migration?",
            choices=["Yes", "No", "Postpone"]
        )

        print(f"Human response: {response}")

        if response == "Yes":
            await hitl.notify("Database migration started.")
            # ... run migration ...
            await hitl.notify_completion("The database migration is complete!")

    except Exception as e:
        print(f"An error occurred: {e}")

if __name__ == "__main__":
    asyncio.run(main())

import os
import requests

API_KEY = os.getenv("HITL_API_KEY", "mcp_pk_...")
BASE_URL = "https://hitlrelay.app/api/v1"
headers = {
    "Authorization": f"Bearer {API_KEY}",
    "Content-Type": "application/json"
}

# Request human input
def request_approval(prompt, choices=None):
    payload = {"prompt": prompt, "choices": choices or ["Approve", "Deny"]}
    resp = requests.post(f"{BASE_URL}/hitl/request", headers=headers, json=payload)
    resp.raise_for_status()
    return resp.json()

# Usage
result = request_approval("Deploy to production?", ["Deploy Now", "Cancel"])
print(f"User responded: {result['response']}")

Command Line Interface

Use the HITL CLI for quick integrations from shell scripts and terminal workflows:

# Authenticate (OAuth 2.1 - opens browser)
uvx hitl-cli login --name "My Workstation"

# Request human input
uvx hitl-cli request --prompt "Should I proceed with deployment?" \
  --choice "Yes" --choice "No" --choice "Ask me later"

# Send notification
uvx hitl-cli notify --message "Backup completed successfully"

# Notify task completion
uvx hitl-cli notify-completion --summary "Data processing finished: 10,000 records in 5 minutes"

# Or use API key (for automation/CI/CD)
export HITL_API_KEY="mcp_pk_..."
uvx hitl-cli request --prompt "Deploy now?"

# Install from PyPI
pip install hitl-cli

# Then use hitl-cli commands
hitl-cli login --name "My Workstation"
hitl-cli request --prompt "Approve deployment?" --choice "Yes" --choice "No"

Bonus: For Claude Code, add the hitl-hook-review-and-continue hook to your settings for continuous interaction loops. See the hitl-cli README for details.
